Description
Technical Data Sheet

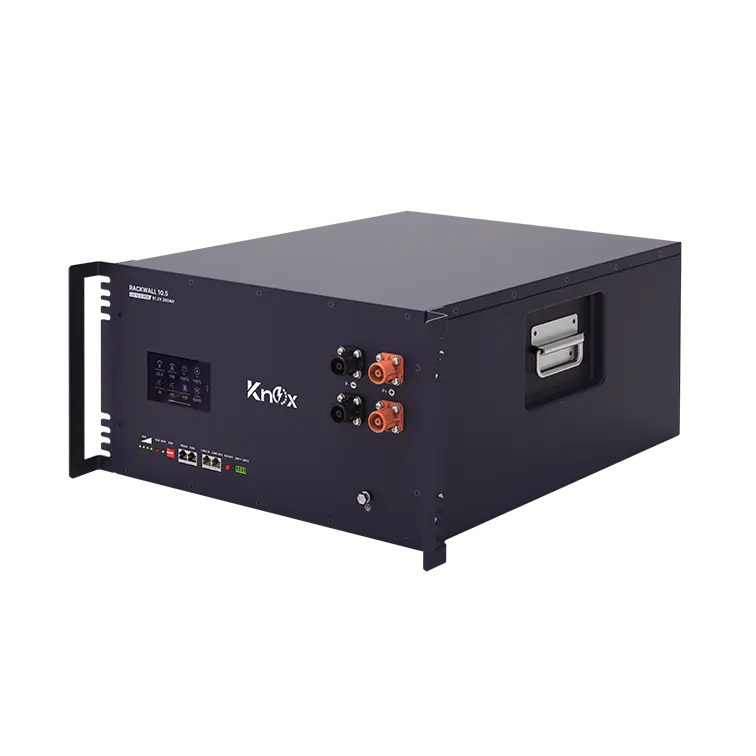

| Model | LIO 10.5-IP20 |
| Nominal Voltage [V] | 51.2 |
| Nominal Capacity [Ah] | 200 |
| Total Energy [Wh] | 10240 |
| Dimension (W*D*H, mm) | 442*550*250 |
| Weight [Kg] | 83.0 |
| Max. Charging Current [A] | 200 |
| Max. Discharging Current [A] | 200 |
| Pulse Discharge Current | 240A @2S |
| Charging Voltage [V] | 55.2-57.6 |
| End of Discharge Voltage [V] | 44 |
| Operation Humidity | 0-95% RH (No condensing) |
| Operating Temperature Range |
Charge: 0~+55℃, Discharge: -20~+55℃ |
| Cycle Life* | >6000 |
| Designed Calendar Life | 10 Years |
| Communication interface |
For inverter: RS485, CAN For battery to battery: LINK-IN, LINK-OUT |
| Protection |
Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit |
| Parallel Support** | Yes, Max. 15 Sets |
| Series Support | Not support |
Notes:
(1) 25℃, 0.5C/1C, 90%DOD to 80% of initial capacity.
(2) For parallel connection, refer to user manual.
