Technical Data Sheet

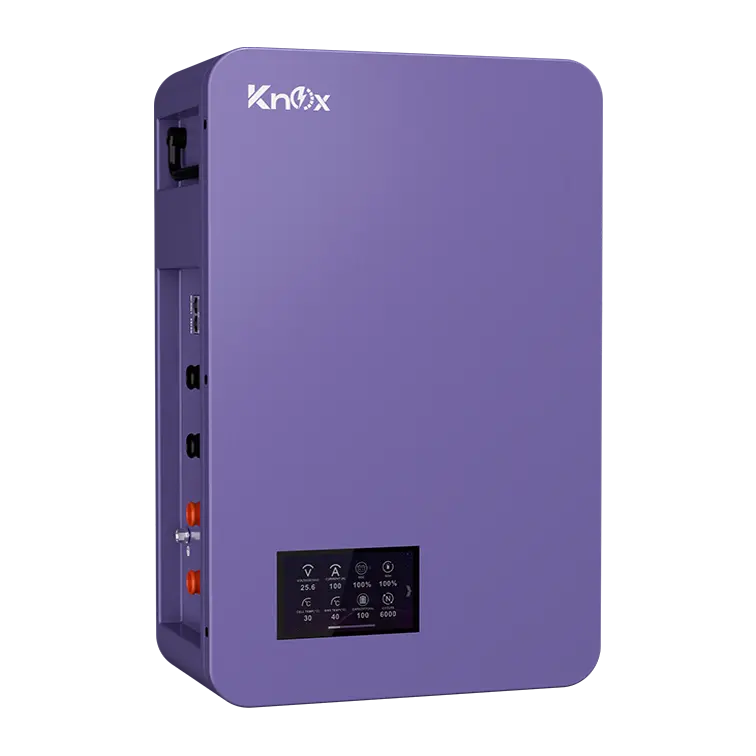

| Model | LIO 2.66-IP20 |
| Nominal Voltage [V] | 25.6 |
| Nominal Capacity [Ah] | 100 |
| Total Energy [Wh] | 2560 |
| Dimension (W*D*H, mm) | 395*470*160 |
| Weight [Kg] | 28.0 |
| Max. Charging Current [A] | 100 |
| Max. Discharging Current [A] | 100 |
| Pulse Discharge Current | 120A @2S |
| Charging Voltage [V] | 27.6-28.8 |
| End of Discharge Voltage [V] | 22 |
| Operation Humidity | 0-95% RH (No condensing) |
| Operating Temperature Range |
Charge: 0 ~ +55°C; Discharge: -20 ~ +55°C |
| Cycle Life (1) | >6000 |
| Designed Calendar Life | 10 Years |
| Communication interface |
For inverter: RS485, CAN For battery to battery: LINK-IN, LINK-OUT |
| Protection |
Over voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit |
| Parallel Support (2) | Yes, Max. 8 Sets |
| Series Support | Not support |
Note:
(1) 25°C, 0.5C/0.5C, 80%DOD to 70% of initial capacity.
(2) For parallel connection, refer to user manual.
