Description
| Technical Datasheet | |
|---|---|

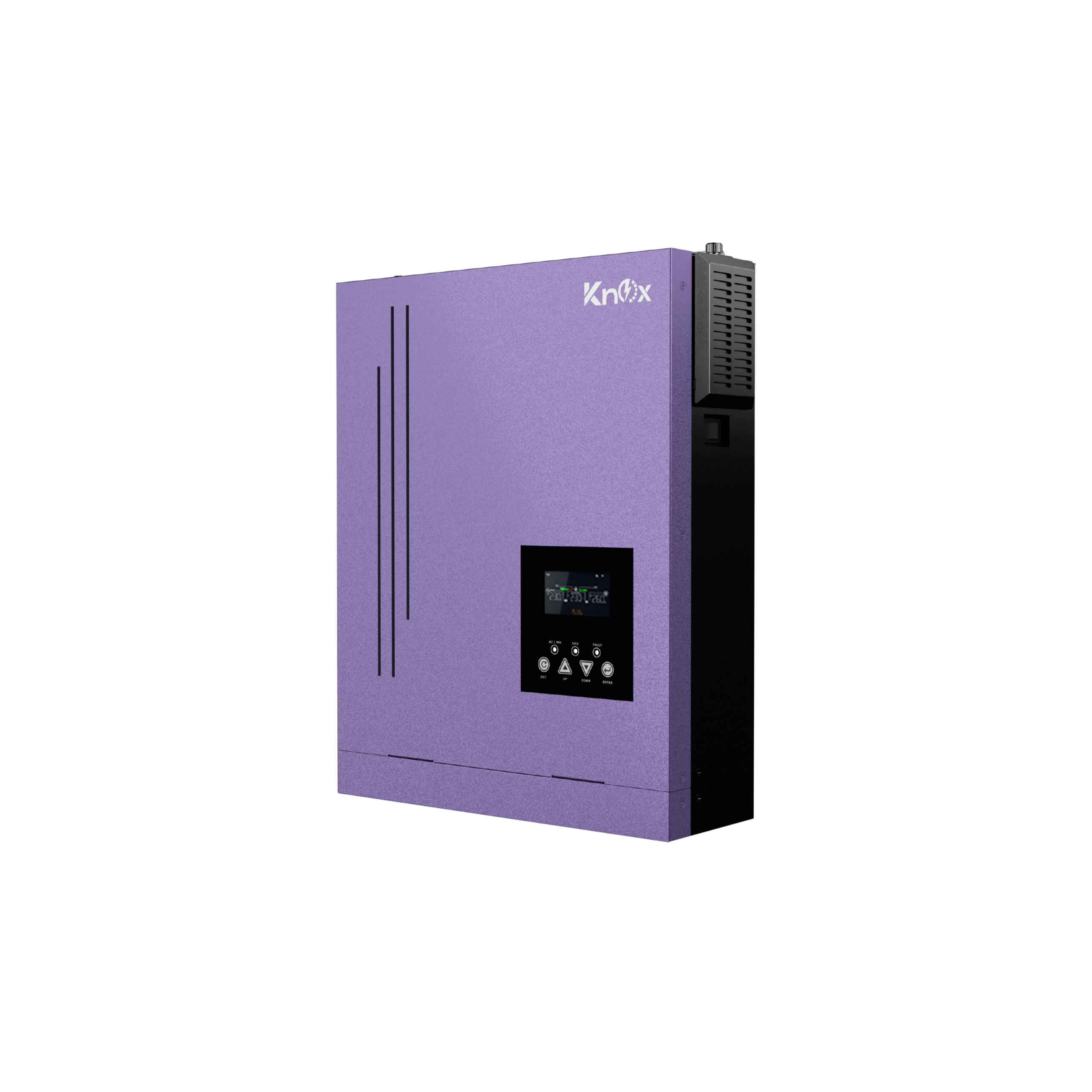

| KNOX SERIES | Krypton Eco 4000 |
| MODEL | 3kW-24-pV4000 |
| Rated Power | 4000VA/4000W |
| Battery Mode Power | 2500W |
| PV+Bat Output Power | 3000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 184 – 264 or 195.5 – 253 VAC |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ±5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Maximum PV Array Power | 4000W |
| MPP Range @ Operating Voltage | 30-400VDC |
| PV Rated Current | 13A |
| Max. Input Current (Isc) | 16A |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 95x288x357 |
| Net Weight (kgs) | 7.1 |
| Communication Interface | RS232/RS485, WiFi |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | Storage Temperature | -10°C to 50°C | -15°C to 60°C |
